High Performance MPO Trunk Cable with 0.35dB Max Loss 150m at 850nm and 400m at 850nm for Data Centers
High Performance MPO Trunk Cable with 0.35dB Max Loss 150m at 850nm and 400m at 850nm for Data Centers High Performance MPO Trunk Cable with 0.35dB Max Loss 150m at 850nm and 400m at 850nm for Data Centers High Performance MPO Trunk Cable with 0.35dB Max Loss 150m at 850nm and 400m at 850nm for Data Centers High Performance MPO Trunk Cable with 0.35dB Max Loss 150m at 850nm and 400m at 850nm for Data Centers High Performance MPO Trunk Cable with 0.35dB Max Loss 150m at 850nm and 400m at 850nm for Data Centers
Επικοινωνήστε

High Performance MPO Trunk Cable with 0.35dB Max Loss 150m at 850nm and 400m at 850nm for Data Centers

Ποσότητα παραγγελίας min : 10 Τιμή : 3.2
Πιστοποίηση: RoHS, CE, ISO9001 Έγγραφο: Βιβλίο του προϊόντος PDF

Λεπτομερής ενημέρωση
Δομή σύνδεσης: MPO-MPO Υλικό σχήμα: Στρογγυλό σύρμα
Επιτρεπόμενη αντοχή εφελκυσμού: <100n Λειτουργία ινών: OM4 50/125μm
Απόσταση Ethernet 40G: 150m σε 850nm Απόσταση 10G Ethernet: 400μ στα 850nm
Υαλοπίνακας: Corning ClearCurve® Ελάχιστη ακτίνα κάμπωσης: 3,0 χιλιοστά
Μήκος κύματος: 850/1300nm Αδυνάμωση σε 850 nm: ≤2,3dB/km
Εξασθένηση στα 1300nm: ≤ 0,6 dB/km Εκτατό φορτίο εγκατάστασης: 66η
Αντοχή εφελκυσμού: 80/240Ν Απώλεια εισαγωγής: Τυπικό≤0,30dB, Μέγιστο≤0,75dB
Απώλεια επιστροφής: ≥50dB, ≥55dB(Elite)
Επισημαίνω:

0.35dB Max MPO Trunk Cable

,

150m at 850nm MPO Patch Cord

,

400m at 850nm MPO Fiber Cable

Περιγραφή προϊόντων

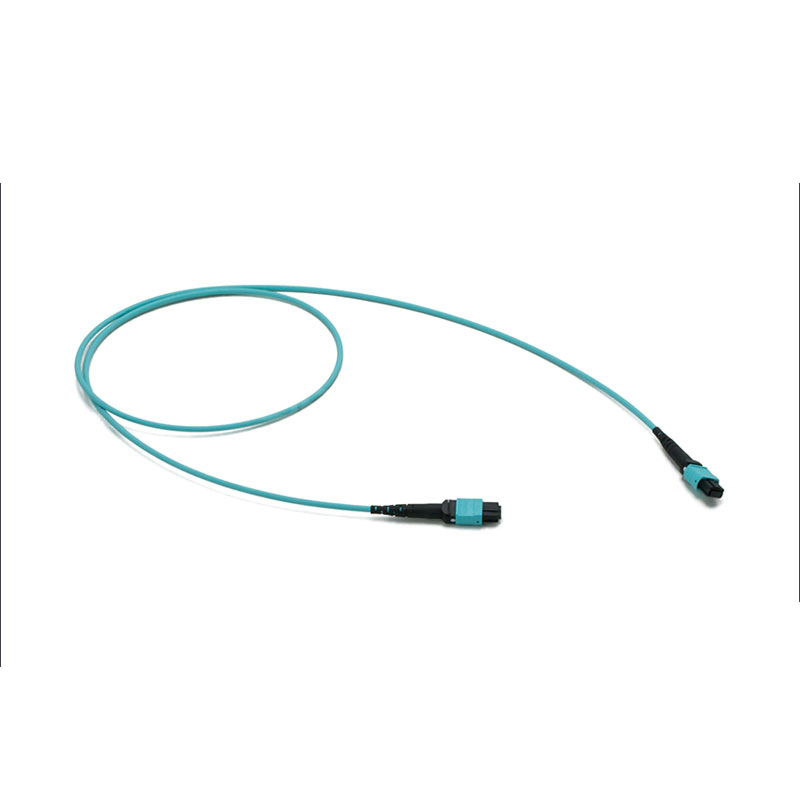

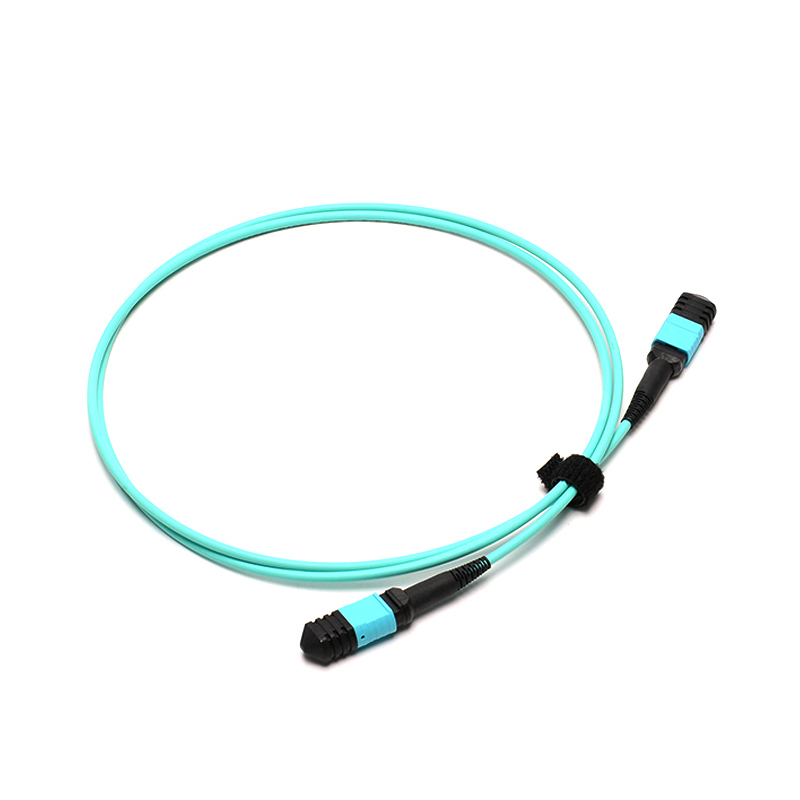

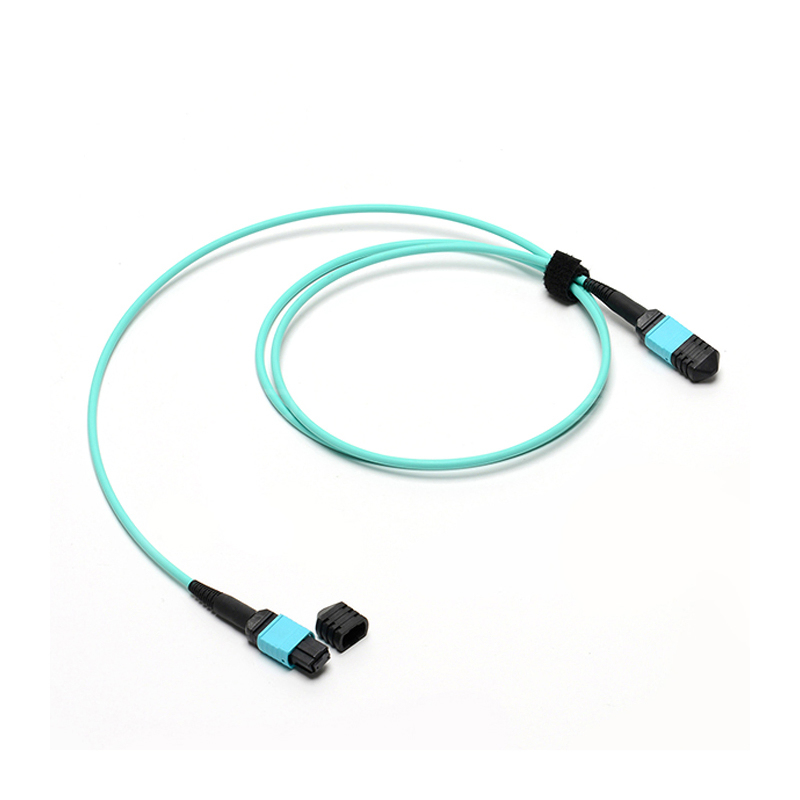

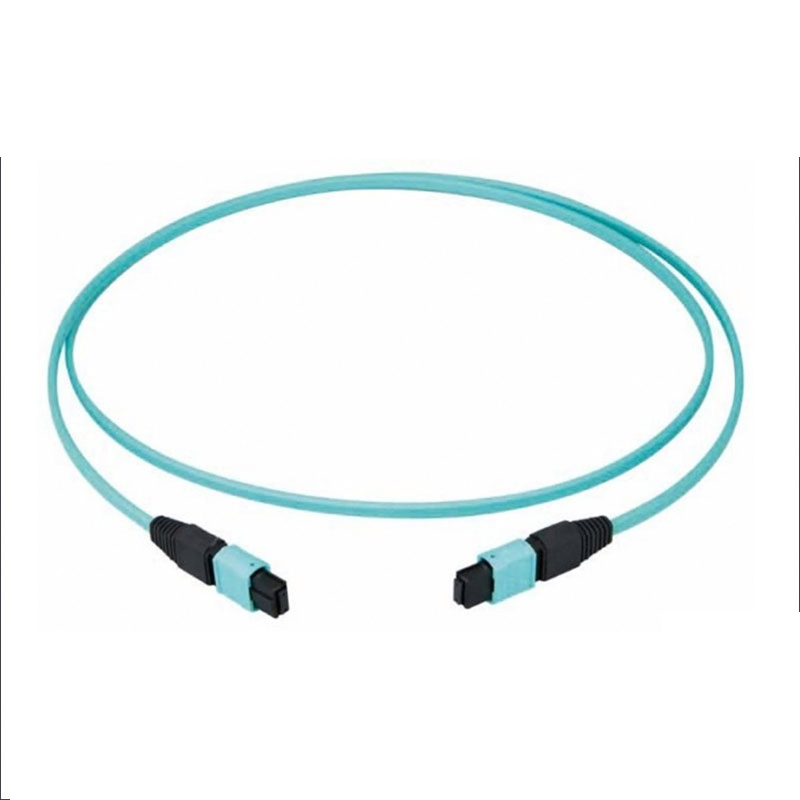

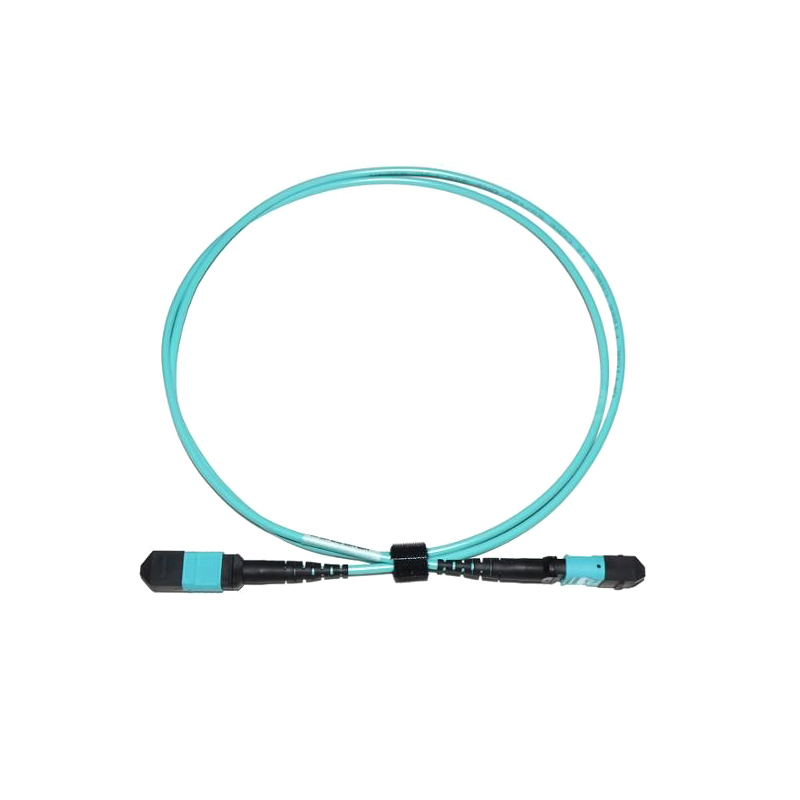

High Quality MPO Trunk Cables 12 Fibers MM OM3 OM4 Plenum (OFNP), 0.35dB Max, Type B, Aqua

FiberMania Cable supplies MTP® breakout cables in single-mode and multimode, employing 12, 24, 48, and 72 fibers. The MTP® fiber cable splits one 12 strand MTP® fiber optic cable into 12 individual SC cables. Fan-out style MTP® cable is available in both male and female styles, varying in length and by the diameter of the fan tube.

High Performance MPO Trunk Cable with 0.35dB Max Loss 150m at 850nm and 400m at 850nm for Data Centers 0

MTP/MPO Cable Assemblies, commonly recognized as MTP® Breakout Fiber as well, are primarily utilized for data distribution patch panels, including plenum applications.

Key Features
  • MPO trunk patch cord can connect multi-core optical fibers and can be used with 12F/24F/48F/72F jumpers.
  • High bandwidth and low loss: Using precision-polished fiber end faces, insertion loss ≤0.3dB, ensuring 40G/100G/400G high-speed transmission without delay.
  • Durability and stability: High-strength OM3/OM4 fiber + dust-proof buckle design, anti-bending, anti-interference, plug-in life>500 times.
  • Plug and play: Pre-terminated design, no need for on-site splicing, fast deployment saves 90% installation time.
  • Flexible configuration: Supports 12-core/24-core/48-core customization, optional length 0.5m~50m.
Specifications
Connector MPO/MTP(Male/Female)
Fiber Mode SM(OS2) | mm(OM1/OM2/OM3/OM4/OM5)
Polishing Type PC | APC | PC
Insertion Loss Typical≤0.30dB Max≤0.75dB Typical≤0.15dB (Elite) Max≤0.35dB (Elite)
Return Loss ≥50dB ≥55dB(Elite) | ≥60dB ≥65dB(Elite) | ≥35dB
Repeatability ≤0.1dB
Durability ≤0.2dB (1000 times mating)
Fiber Count 8/12/24/48/72/96/144 Fibers
Cable Jacket PVC/OFNR/OFNP/LSZH
RoHS Compliancy Status Compliant
Applications & Features
  • Data Distribution Patch Panels
  • High-Density Networking Environments
  • Plenum Spaces
  • Used with MPO/MTP adapter panel
  • Active optical network transceiver control
  • Optical fiber distribution system
Our Advantages
  • Versatile Fiber Options: Available in single-mode and multimode configurations.
  • Multiple Fiber Counts: Choose from 12, 24, 48, or 72 fibers to suit your requirements.
  • Breakout Design: Each assembly splits one 12-strand MTP® fiber optic cable into 12 individual SC cables.
  • Fan-Out Styles: Available in both male and female configurations.
  • Customizable Lengths: Select from a variety of lengths and tube diameters.

Our products' reliability and stability have been highly recognized by many European and American customers for many years. We have established close, long-term mutually beneficial cooperation relationships with our customers through technology exchange and research and development.

Quality Testing Program
High Performance MPO Trunk Cable with 0.35dB Max Loss 150m at 850nm and 400m at 850nm for Data Centers 1
  • IL and RL Testing: Conduct testing on the insertion loss and return loss of cables to verify their reach and ensure stable signal transmission.
  • 3D Interferometer Testing: Evaluate the connectors or ferrules of cables to verify that the apex offset, radius of curvature, and fiber height are within specified parameters.
High Performance MPO Trunk Cable with 0.35dB Max Loss 150m at 850nm and 400m at 850nm for Data Centers 2 High Performance MPO Trunk Cable with 0.35dB Max Loss 150m at 850nm and 400m at 850nm for Data Centers 3
  • End-Face Inspection: Examine the connector end face for any scratches, defects, or contamination to ensure the tips remain clean.
Production Equipment
High Performance MPO Trunk Cable with 0.35dB Max Loss 150m at 850nm and 400m at 850nm for Data Centers 4
Certifications
High Performance MPO Trunk Cable with 0.35dB Max Loss 150m at 850nm and 400m at 850nm for Data Centers 5
Packaging & Shipping
High Performance MPO Trunk Cable with 0.35dB Max Loss 150m at 850nm and 400m at 850nm for Data Centers 6
Frequently Asked Questions
Q1: What is the warranty of FiberMania's fiber patch cord?

A: FiberMania warrants that all fiber patch cords supplied are free from defects in material and workmanship for a period of five (5) years from the date of supply. All fiber optic bulk cables are UL profiled and every single cable is 100% tested.

Q2: Is it possible to customize our brand information on your fiber cable?

A: Yes, we can print your brand name onto our cable jacket and 1KM total cable length is requested.

Q3: Can you do 3D interferometer test?

A: Yes, we do the 3D test per our customer's request, we can have the pass rate over 90% and even 100% if necessary.

Q4: What is your MOQ of your products?

A: We only have MOQ for some special customized cable order, we request 1km as the total length of the bulk cable.

Q5: Are free samples available from you?

A: Yes, we are always happy to offer the free samples for all of our customers' projects provided that the total cost is under 50 US dollars.
